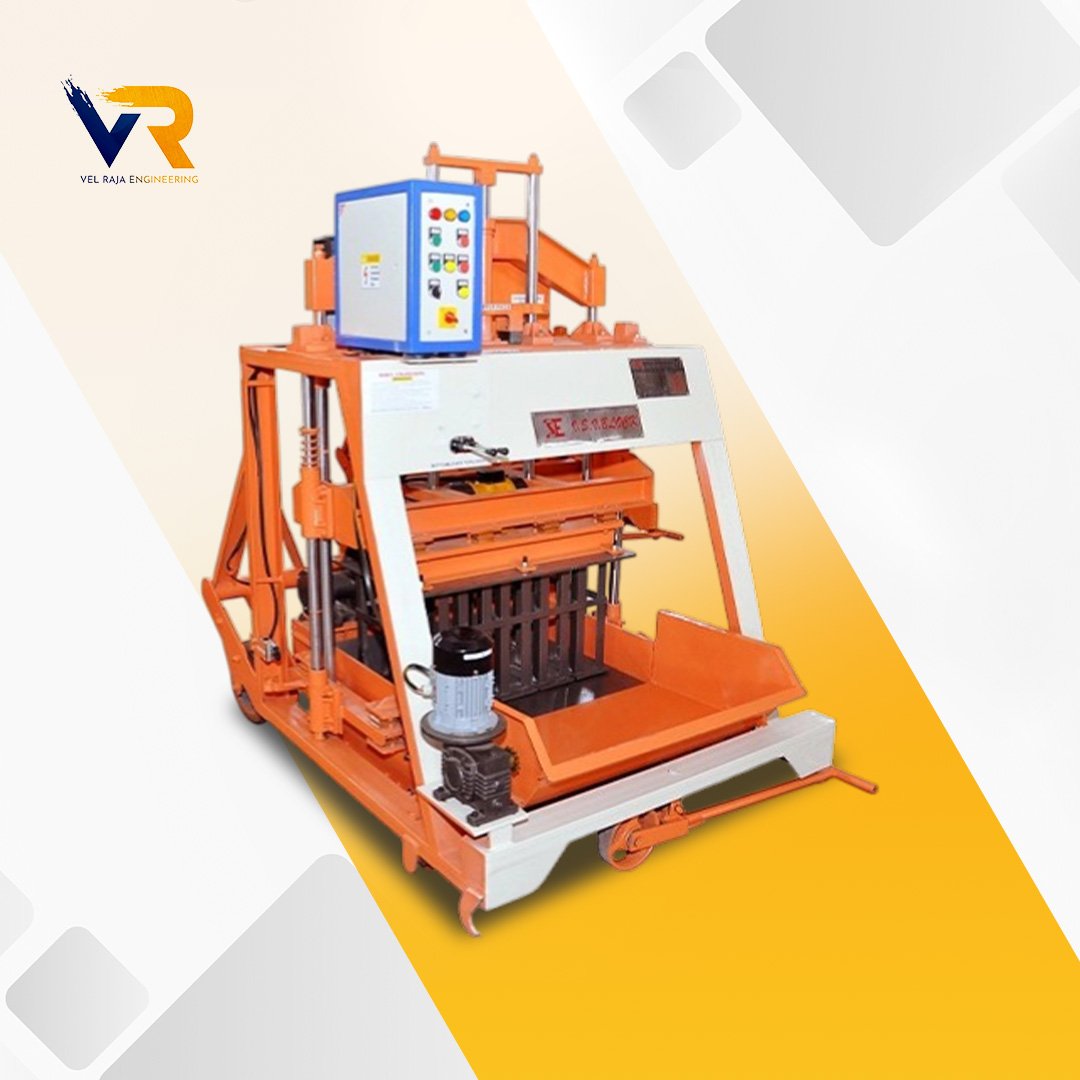

Pressing Type Concrete Block Making Machine
The Pressing Type Concrete Block Making Machine is engineered for efficient and precise production of high-strength concrete blocks, ensuring uniform shape, density, and durability. Built with robust construction and advanced pressing technology, it delivers consistent output with low maintenance and high operational efficiency. Suitable for both small-scale and large industrial applications, this machine offers reliable performance, faster production cycles, and long service life, making it ideal for modern construction requirements.
Specification
| MODEL | 860 DOUBLE VIBRATOR |
| Power | 6.5 HP Three Phase |
| Hydraulic Pump Motor | 3 HP 1440 RPM |
| Vibrator Motor | 3 HP 2880 RPM |
| Travel Motor | 0.5 HP 1440 RPM |
| Operating Pressure | 140 KG / cm2 |
| Vibrations | 6000 HZ Amplitude Adjustable |
| Molding Area | 860 X 600 mm |
| Dimension | 2000 X 1500 X 2000 mm |
| Weight | 1100 Kgs (Approx) |
| Production Capacity | 4" Block - 8 Block / Stroke, 1600 / Shift 6" Block" - 5 Block / Stroke, 1400 / Shift 8" Block - 4 Block / Stroke, 1000 / Shift |
