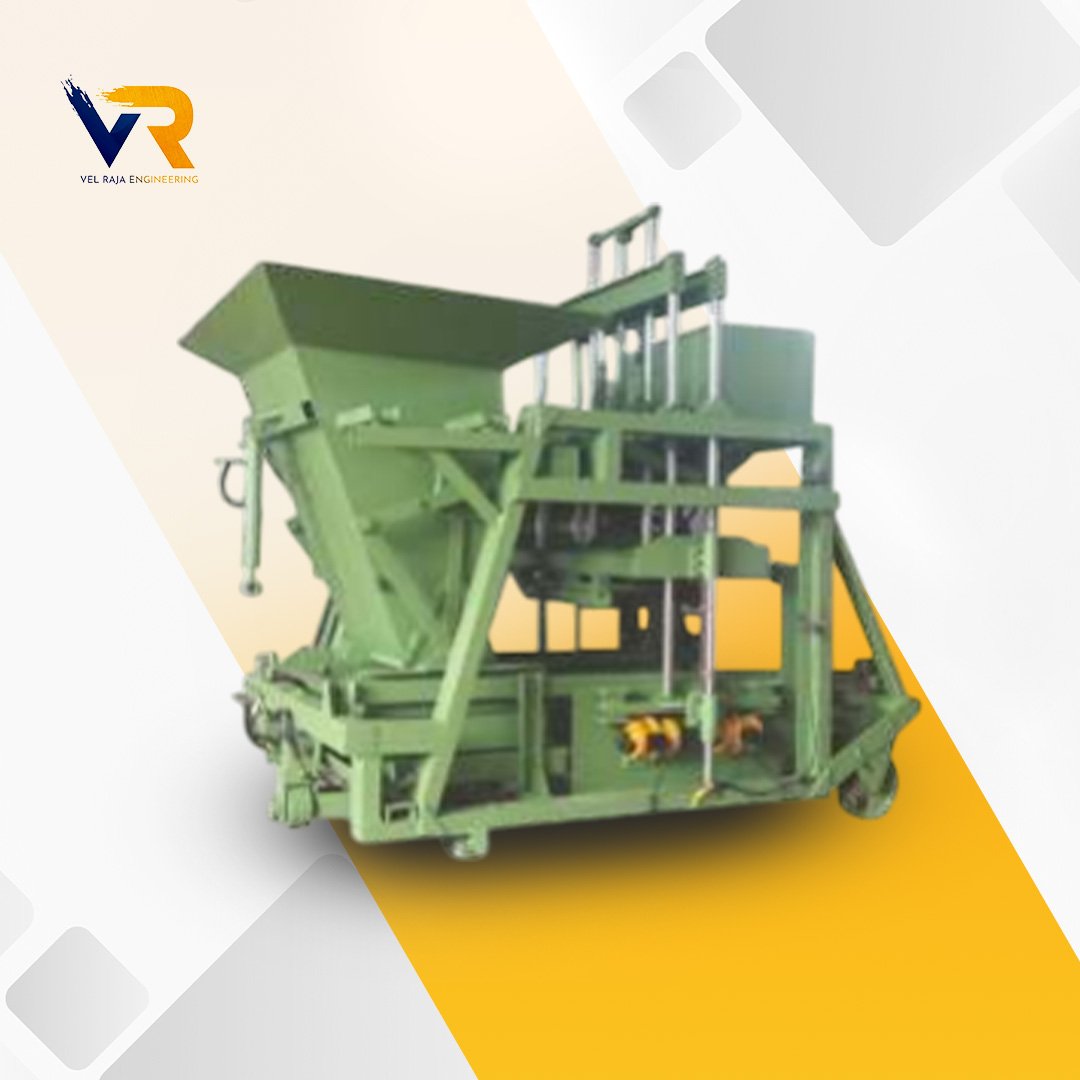

Pressing Type Concrete Block Making Machine Auto Feeder With Hopper

The Pressing Type Concrete Block Making Machine with Auto Feeder and Hopper is designed for efficient and continuous production of high-quality concrete blocks, ensuring uniform shape, density, and strength. Equipped with advanced pressing technology, automatic feeding system, and integrated hopper, it delivers consistent output, reduced manual effort, and smooth material flow with low maintenance. Built with robust construction, this machine offers reliable performance, faster production cycles, and long service life, making it ideal for modern construction applications.

Specification

MODEL 10 BLOCKS AUTO FEEDER HOPPER
Power 10.5 HP Three Phase
Hydraulic Pump Motor 5 HP 1440 RPM
Vibrator Motor (Bottom) 0.5 x 4 = 2 HP 2880 RPM
Vibrator Motor (Top) 1.5 HP 2880 RPM
Travel Motor 2 HP 1440 RPM
Cylinders 7 Nos
Operating Pressure 200 KG / cm2
Vibrations 6000 HZ Amplitude Adjustable
Molding Area 1060 X 900 mm
Dimension 2500 X 1800 X 2300 mm
Weight 2100 Kgs (Approx)
Production Capacity 4" Block - 16 Block / Stroke, 5000 / Shift
6" Block" - 10 Block / Stroke, 4000 / Shift
8" Block - 8 Block / Stroke, 3000 / Shift
