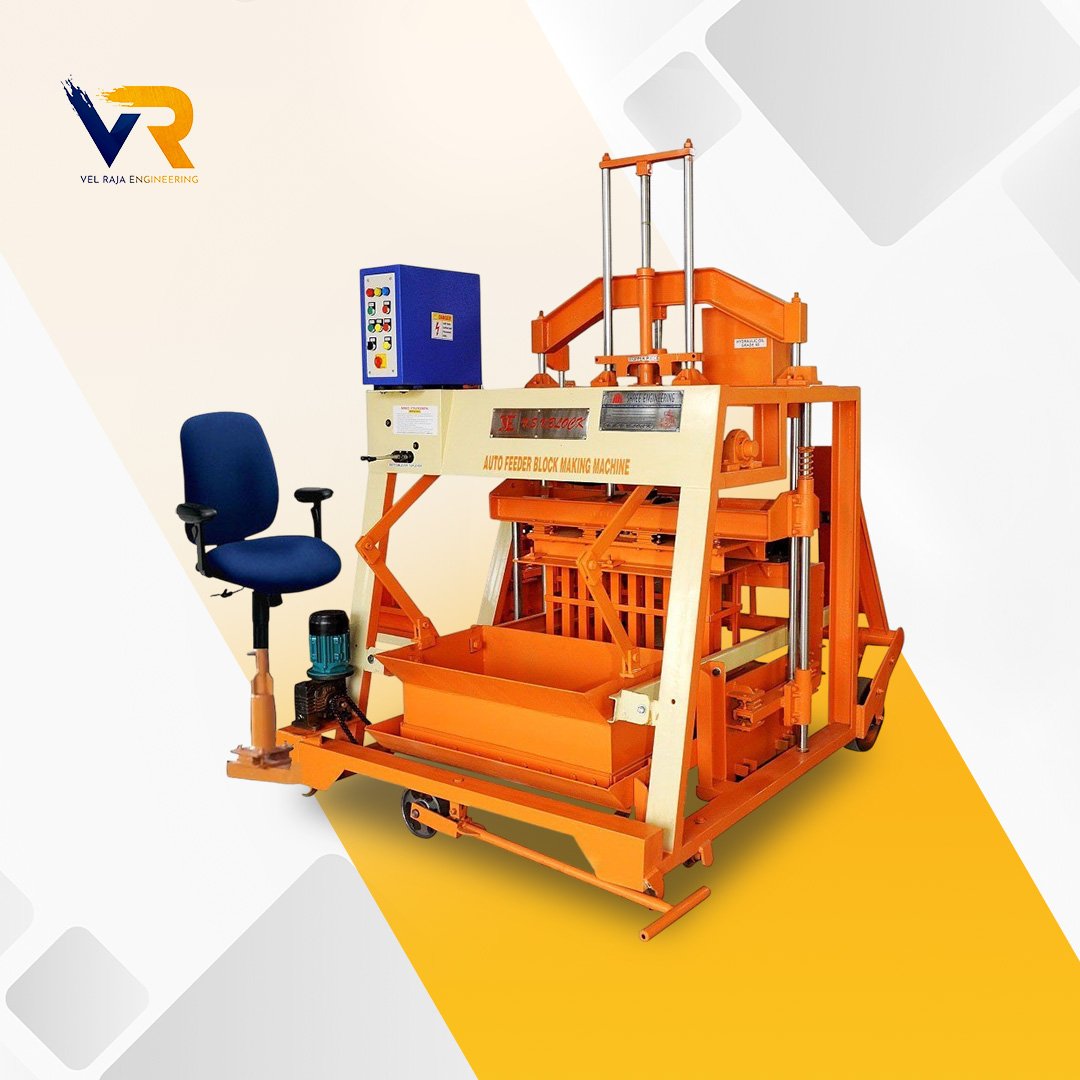

Pressing Type Concrete Block Making Machine Auto Feeder
The Pressing Type Concrete Block Making Machine with Auto Feeder is designed for efficient and continuous production of high-quality concrete blocks, ensuring uniform shape, density, and strength. Equipped with advanced pressing technology and an automatic feeding system, it delivers consistent output, reduced manual effort, and low maintenance. Built with robust construction, this machine offers reliable performance, faster production cycles, and long service life, making it ideal for modern construction applications.
Specification
| MODEL | 860 AUTO FEEDER |
| Power | 8.5 HP Three Phase |
| Hydraulic Pump Motor | 5 HP 1440 RPM |
| Bottom Vibrator Motor | 2 HP 2880 RPM |
| Travel Motor | 1 HP 1440 RPM |
| Operating Pressure | 140 KG / cm2 |
| Vibrations | 6000 HZ Amplitude Adjustable |
| Molding Area | 860 X 900 mm |
| Dimension | 2000 X 1500 X 2000 mm |
| Weight | 1200 Kgs (Approx) |
| Production Capacity | 4" Block - 8 Block / Stroke, 2200 / Shift 6" Block" - 5 Block / Stroke, 1800 / Shift 8" Block - 4 Block / Stroke, 1300 / Shift |
